Flexible Pressure Sensor Research
A research project aimed at identifying, characterizing, and comparing various flexible sensor technologies (including Qvar, FlexiForce, Velostat, and conductive paint) to measure spinal stiffness in clinical settings.
Download Full Technical Report - FRProject Presentation
Scientific Context

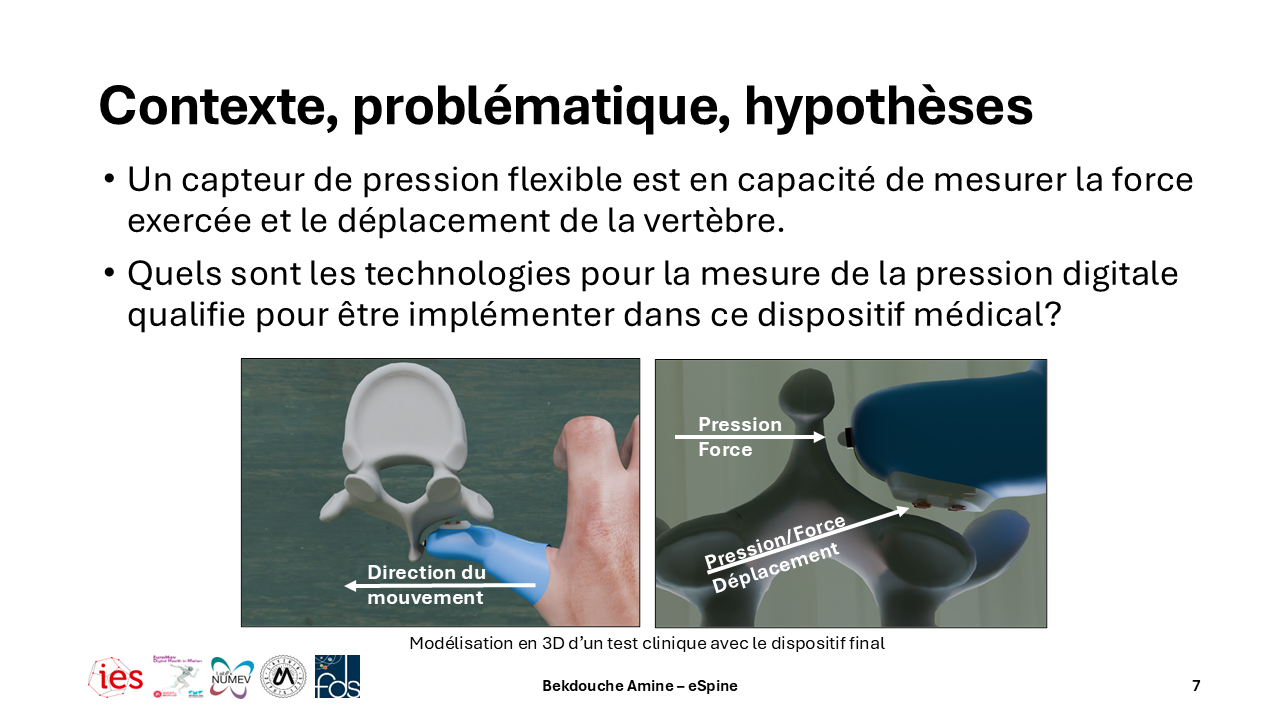

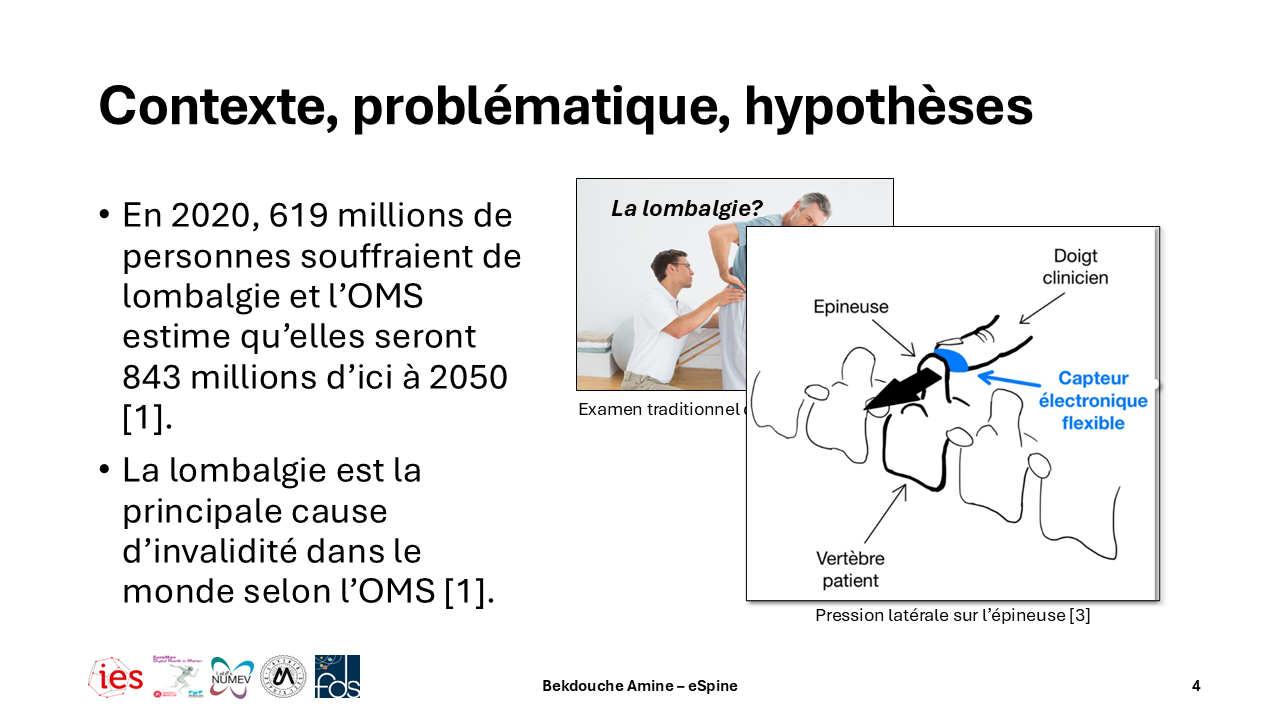

Low back pain is a major public health concern. Current clinical diagnosis relies heavily on manual palpation, a subjective method dependent on the practitioner. This project aims to develop a reliable, flexible sensor to objectively measure spinal stiffness.

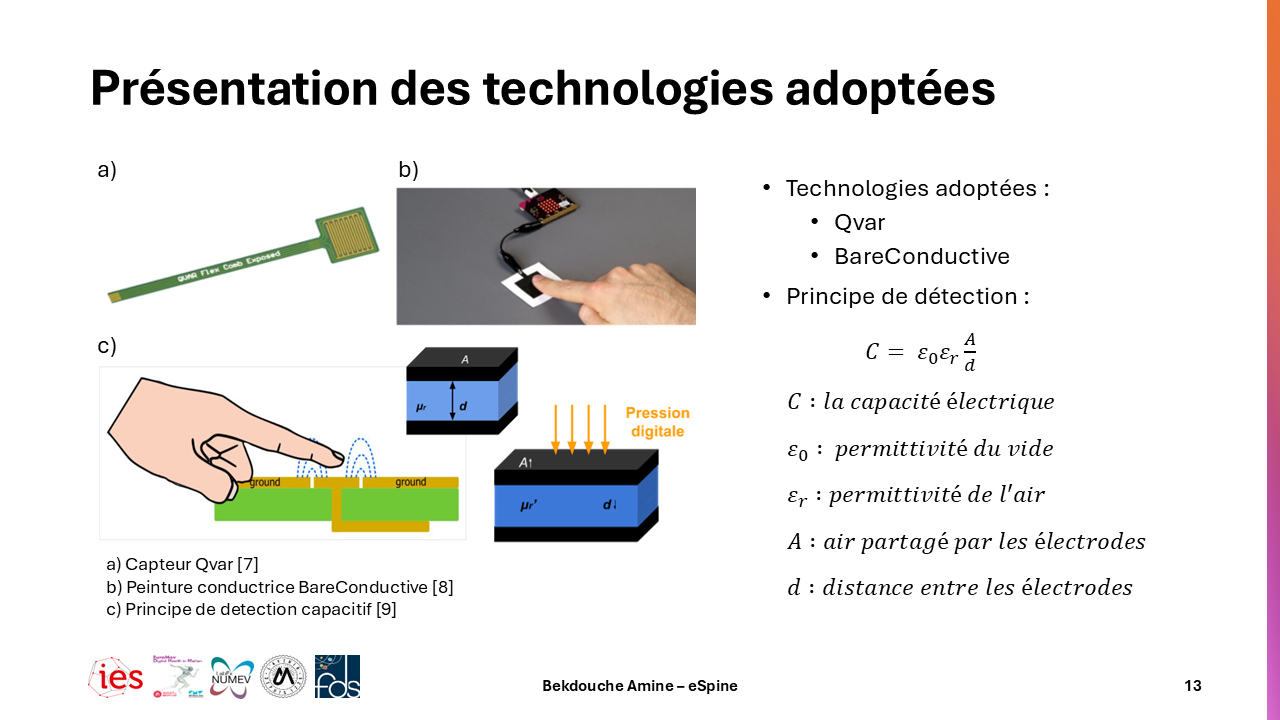

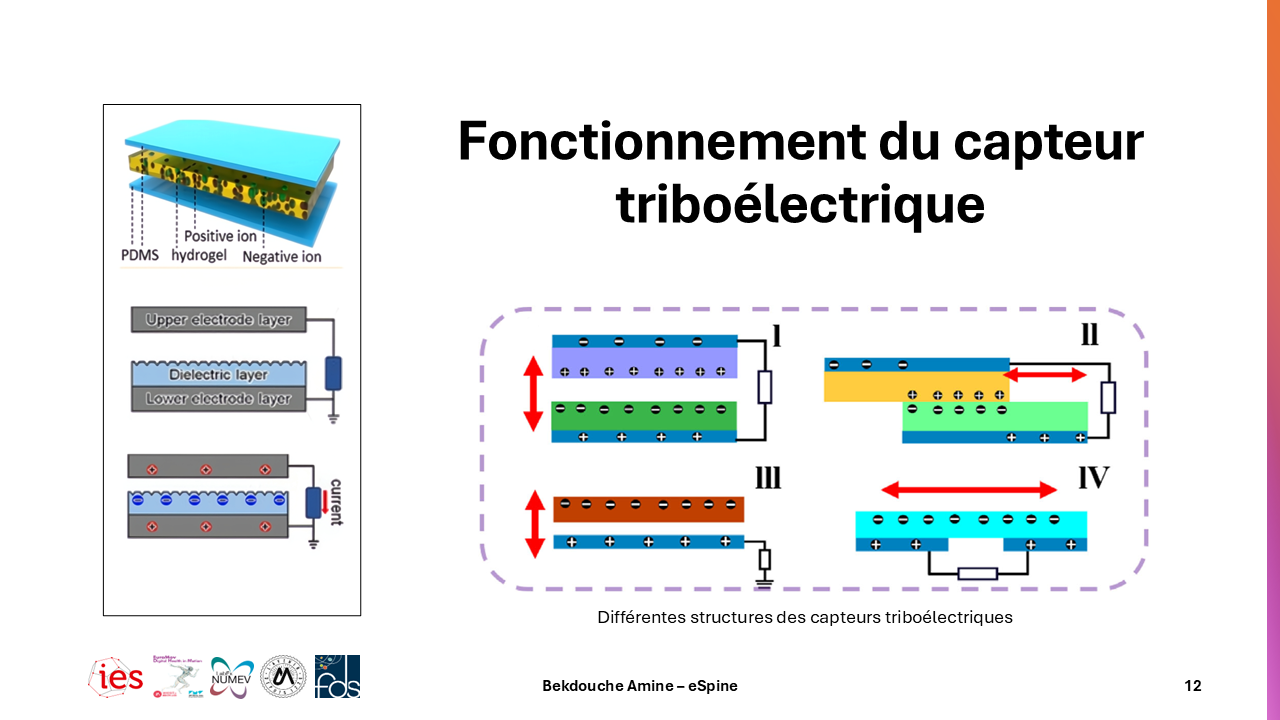

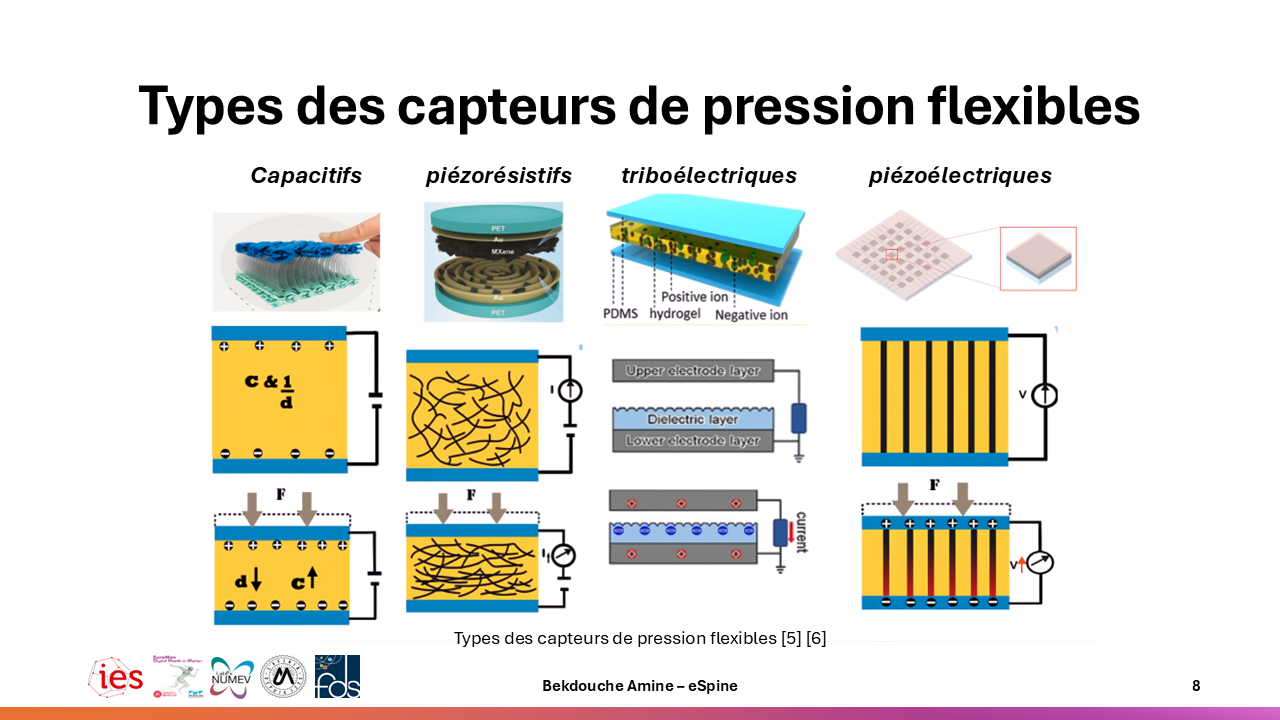

Technologies Studied

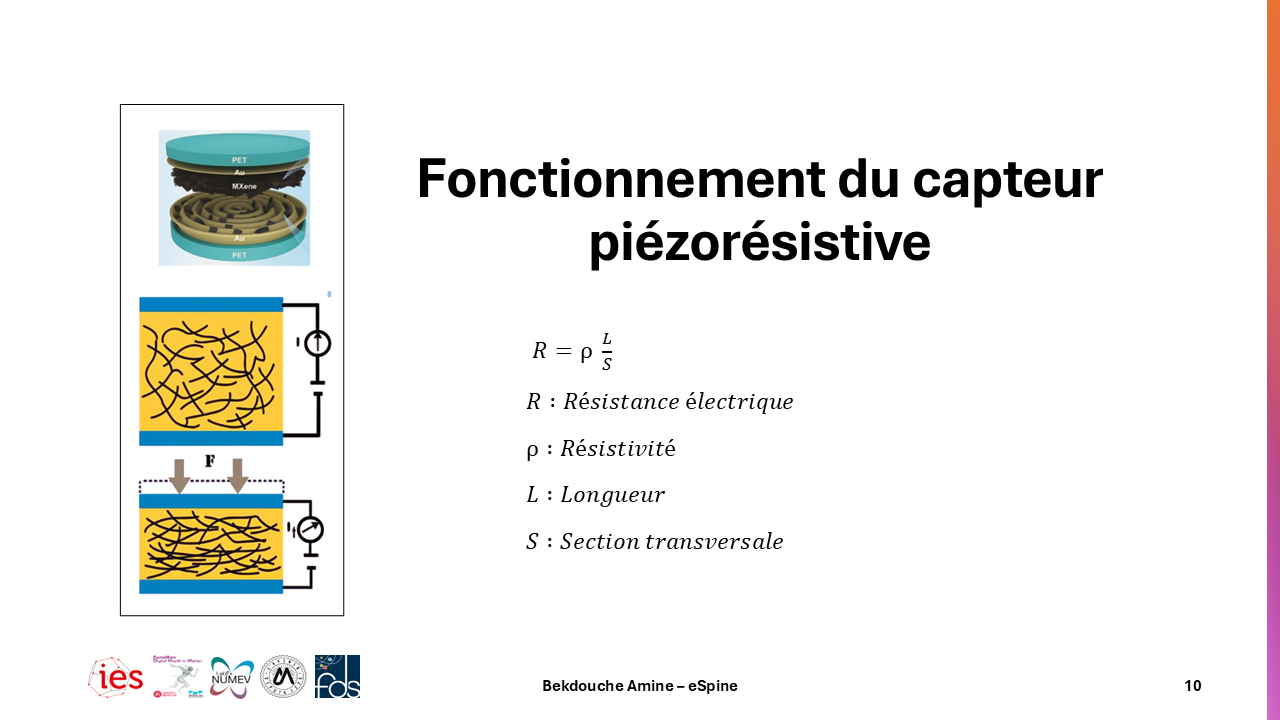

- • FlexiForce: Printed piezoresistive sensor
- • Velostat: Conductive polymer film
- • BareConductive: Water-based conductive paint
- • Qvar: STMicroelectronics high-sensitivity electrostatic sensor
Experimental Setup

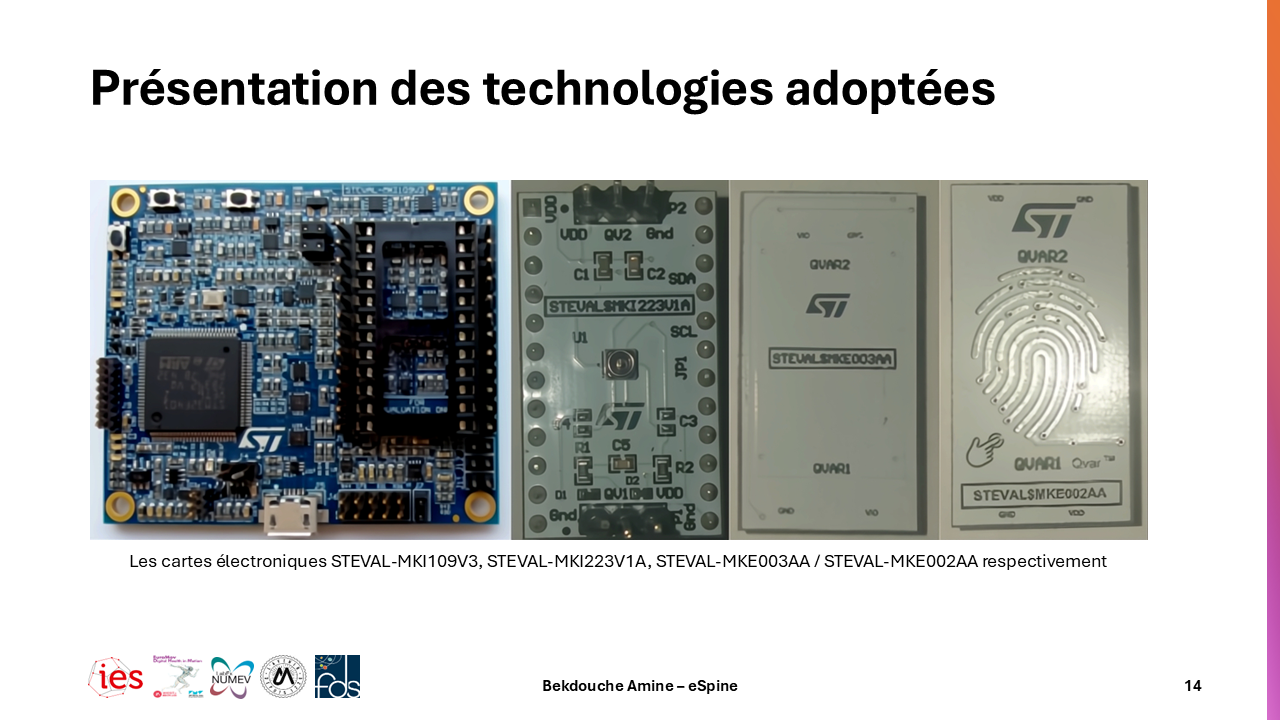

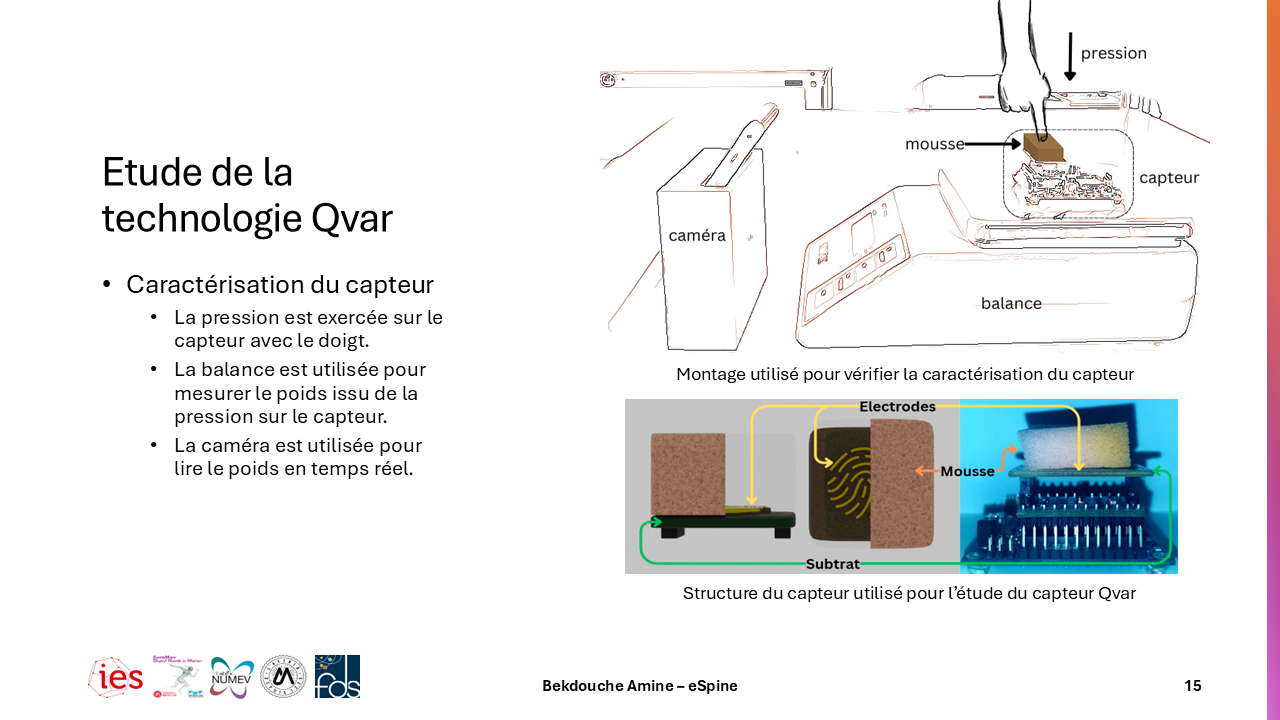

The measurement system utilizes the STEVAL-MKI109V3 board paired with the Qvar module, a dielectric foam-based sensor structure, and a precision scale to correlate applied pressure with electrical output.

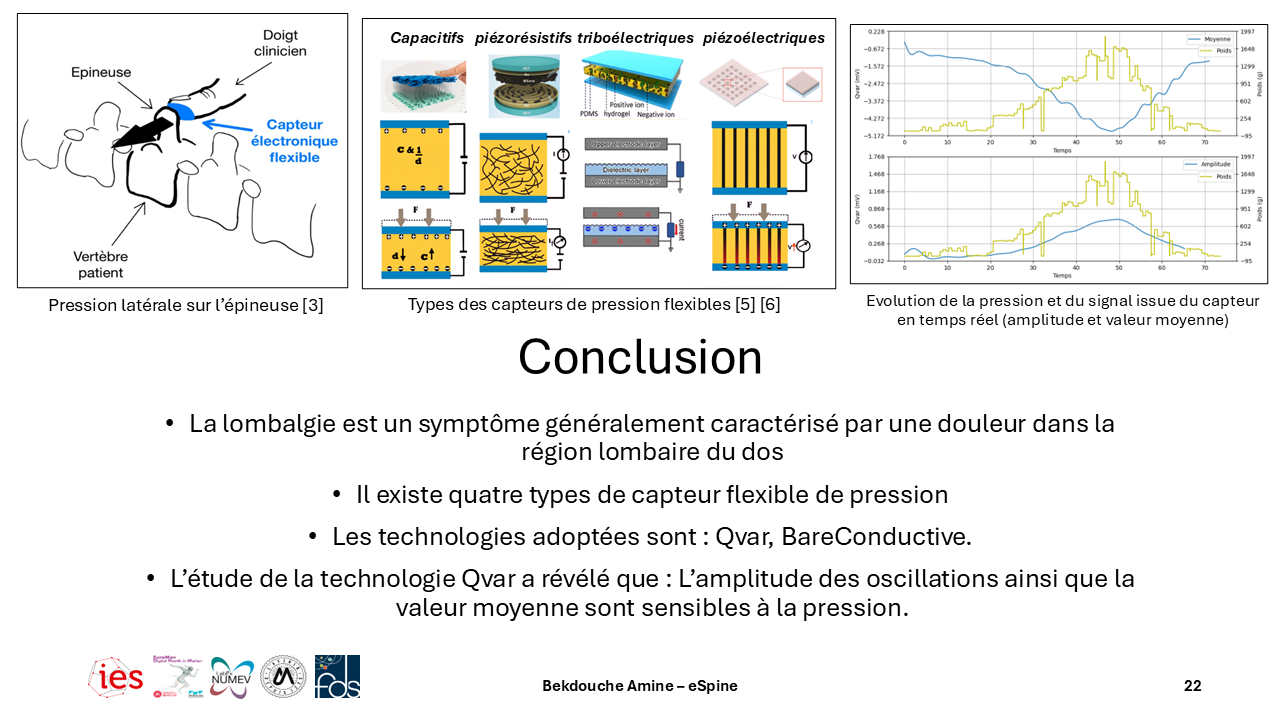

Key Findings
- •Reliable detection of finger-to-electrode distance via dielectric constant variation
- •Signal saturation during direct contact, requiring electrode isolation

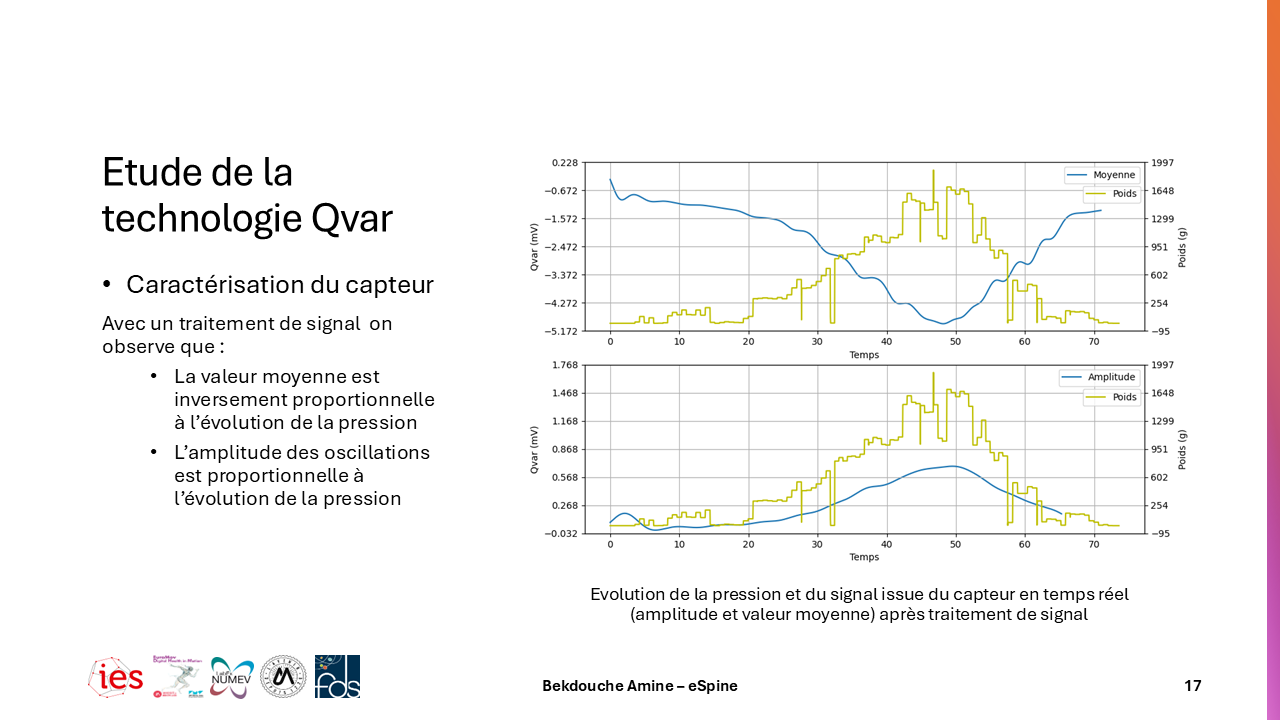

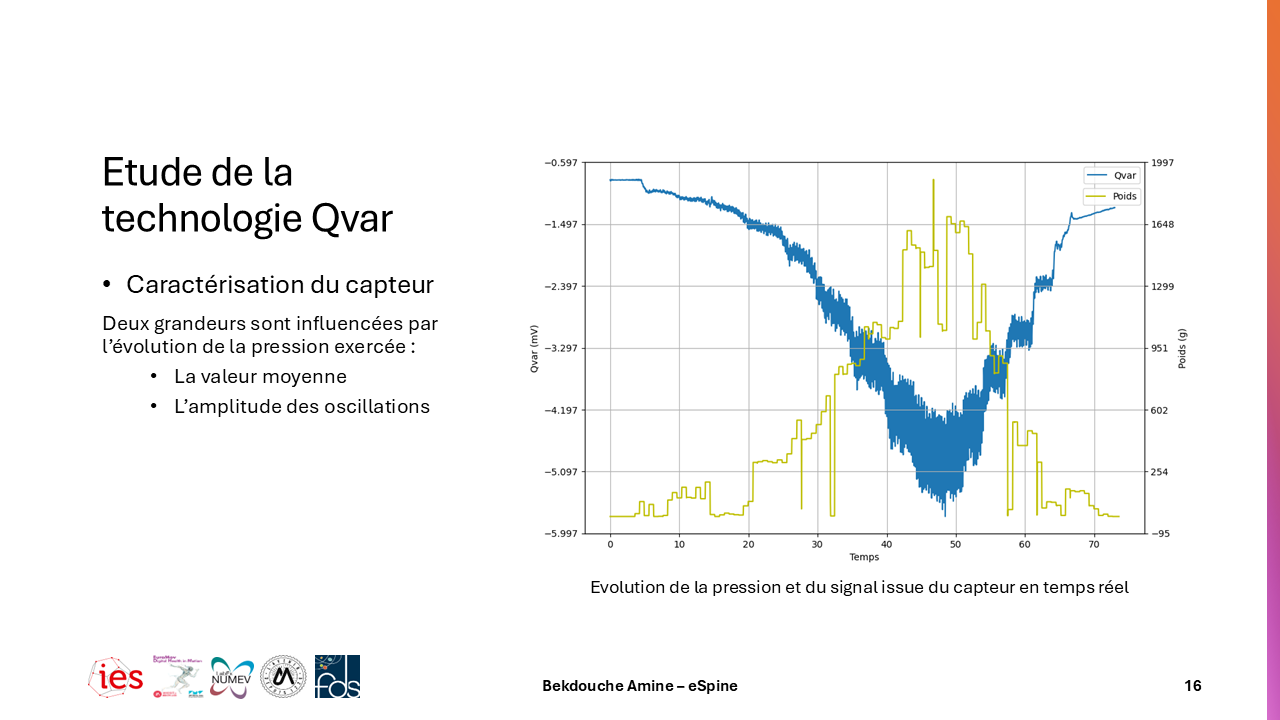

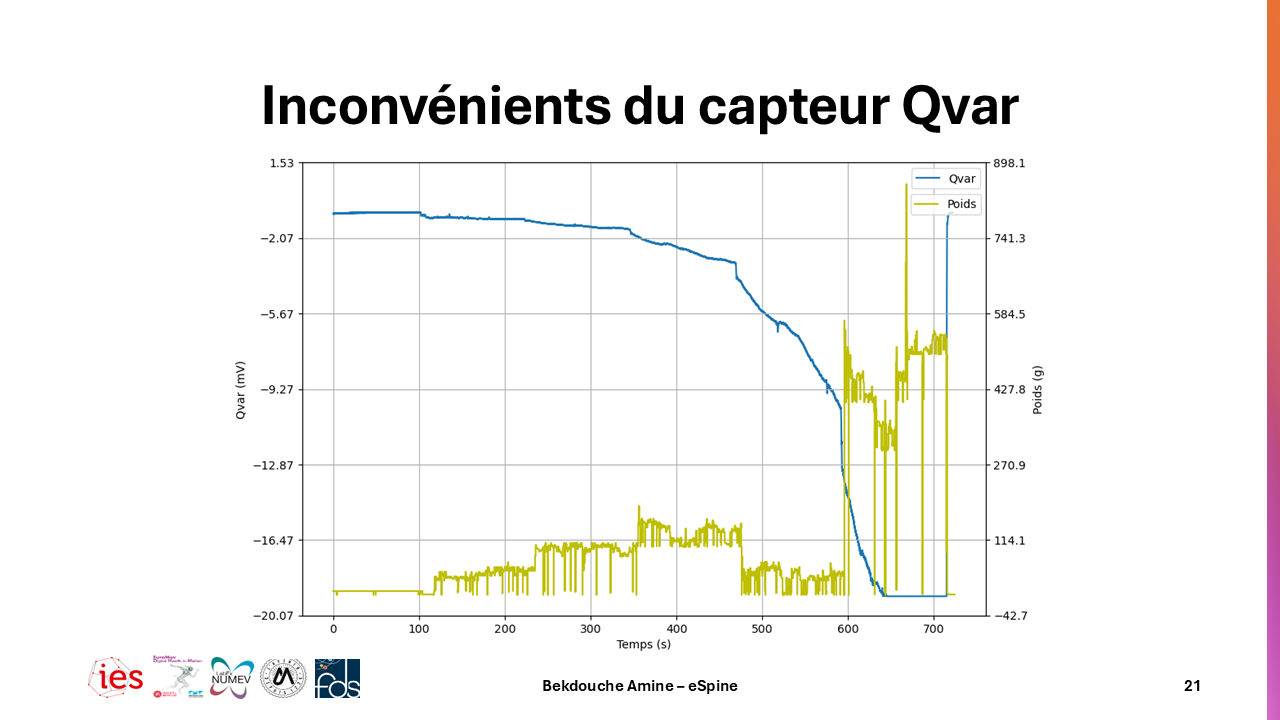

- •Oscillation amplitude proportional to applied pressure

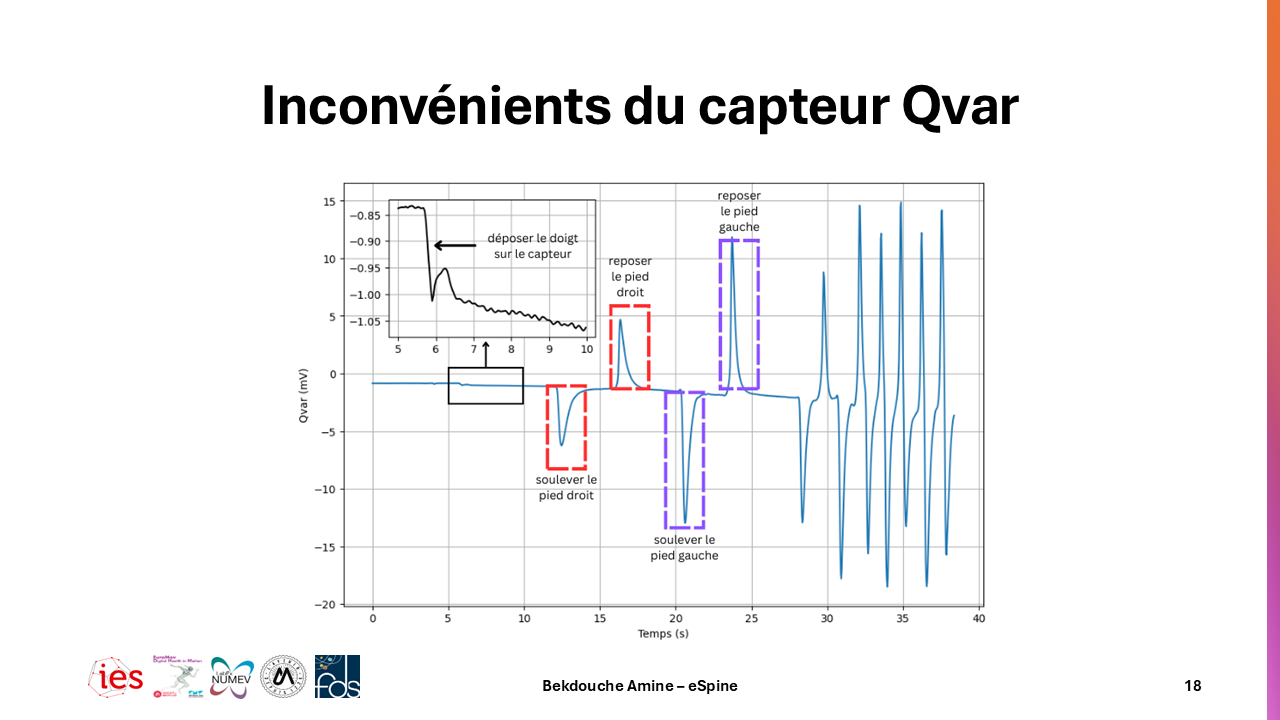

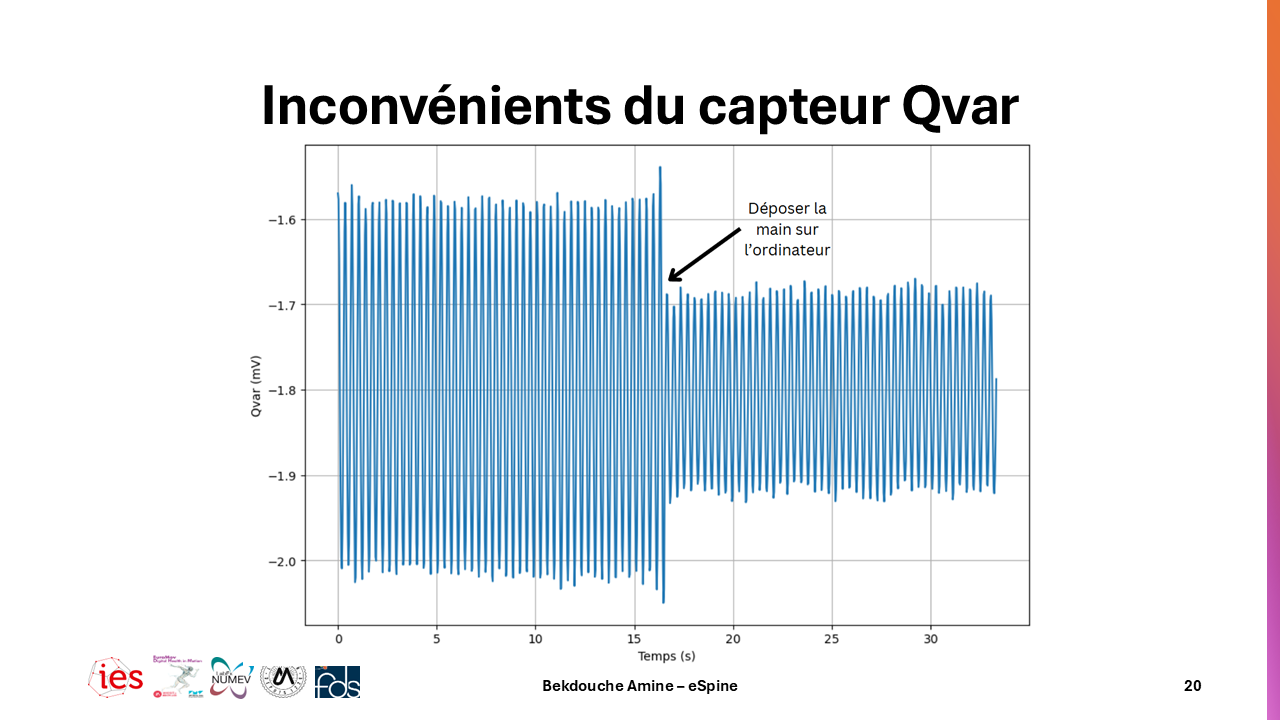

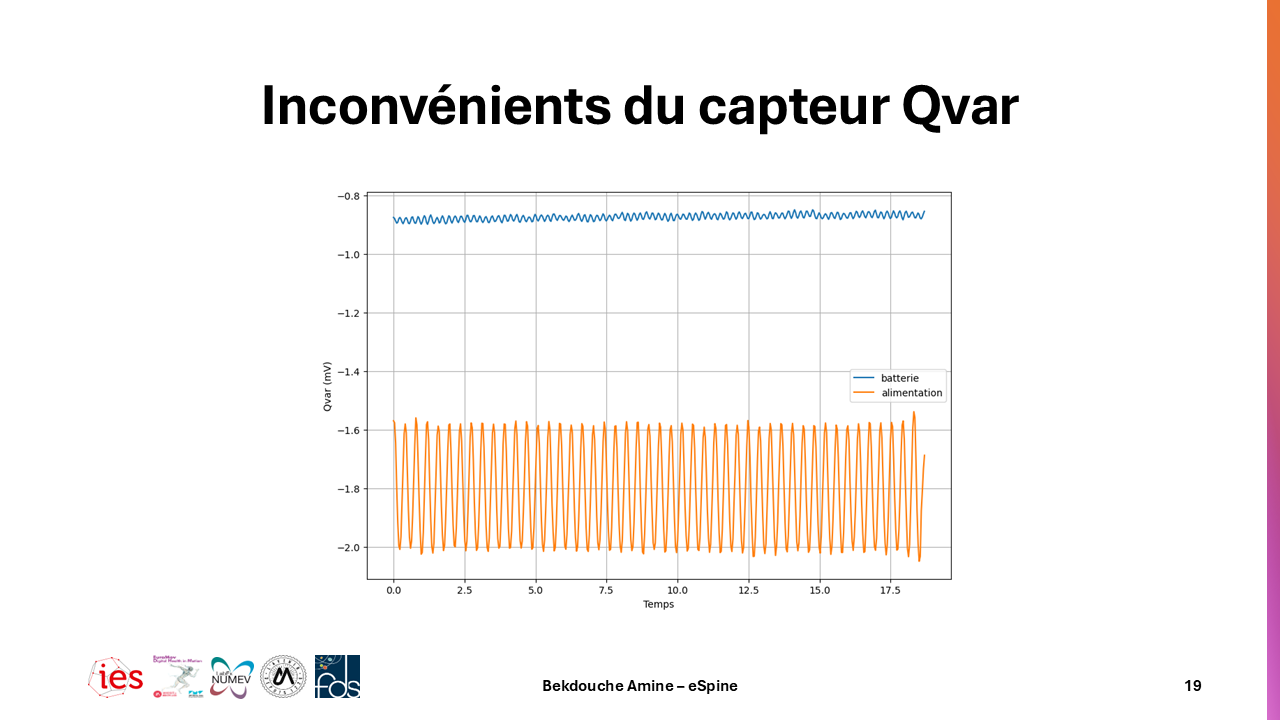

- •High sensitivity but significant environmental interference (50Hz, metallic masses)
